TPLR系列容積式配麥器
作者:admin 發布日期:2019-10-23 點擊量:

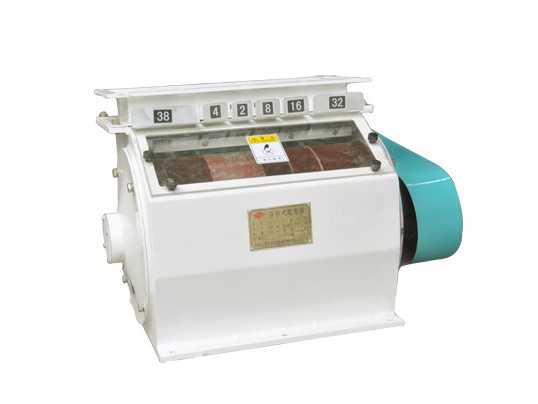

TPLR系列容積式配麥器(圖1)


該機主要用于原糧的配比混合或用于原料定量供給,是糧食加工廠原料配比必備設備。
This series of equipment, mainly used for matching and mixing of unprocessed grains or quantitative feeding of raw materials, is necessary for matching of raw materials in grain processing plants.

特點:
Characteristics:

1、采用電子激光精確下料,靜電噴涂生產工藝,外邊色澤亮麗不易變色。
Electronic laser is adopted for accurate feeding, and electrostatic spraying process is adopted, so the surface color is bright and no discoloration occurs for a long time.

2、結構緊湊簡單,輕巧靈活,操作方便。
It is featured with compact and simple structure, light weight and easy operation.

3、特制的進料口使物料均勻進入配比區,是配比更加恒定。
The specially-made feed inlet can ensure that the materials can enter into the matching area uniformly, and matching can be more constant.

4、該機有6個定量盤,根據定量部位的容積不同,可以是原料的配比混合更加準確。
The equipment is equipped with six quantification plates, and they can make the matching and mixing of raw materials more accurate according to different volumes of the quantified positions.

5、結構簡單,運行平穩,價位較低。
It is featured with simple structure, stable operation and relatively low price.

6、調節輸送能力和調節輸送精度足以滿足小麥加工行業需求。
Adjustment & conveying capacity and precision can meet corresponding requirements in wheat processing industry.

技術參數:
Technical parameters:

項目 Item

型號 Model

TPLR20

TPLR30

六個定量盤容積的比例分配
  Proportional distribution of volume of six quantification plates

2%,4%,6%,16%,32%,38%

2%,4%,6%,16%,32%,38%

配比況差(%)
  Matching difference (%)

≤2

≤2

配比范圍
  Matching range (n)

2n(n≤50)

2n(n≤50)

調速范圍(r/min)
  Speed adjustment range (r/min)

≤40

≤40

大產量(t/h)
  Max. output (t/h)

14

23

功率
  Power (kw)

0.75

0.75

外形尺寸(長×寬×高)mm
  Boundary dimension (L × W × H) mm

740×700×410

744×775×510
