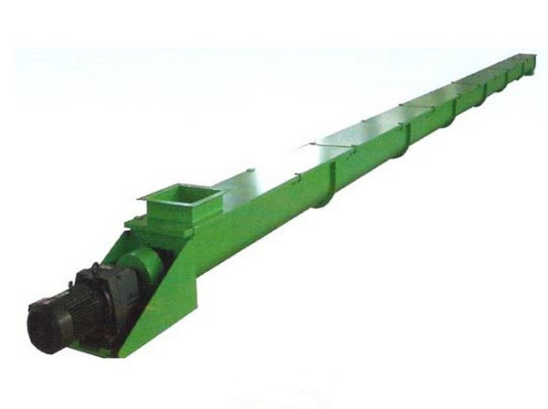

該機是固定、密封、連續輸送機械設備，其工作原理為借助螺旋葉片的轉動來推進物料前進。本設備具有占地面積小、密封性強無粉塵、噪音小、結構簡單、工作平衡可靠等特點。可安置在地面或懸掛在天花板下，可多點進料和卸料，可作水平輸送，也可小角度傾斜輸送。
It is a kind of fixed, sealed and continuous conveying equipment whose operating principle is driving the materials forward by utilizing the rotation of screw blade. It is featured with small covering area, satisfactory sealing performance, free of dust, low noise, simple structure, stable and reliable operation, etc. It can be installed on the ground or ceiling. Multiple feeding & discharge are allowed; besides, both horizontal conveying and small-angle inclined conveying are allowed.
本設備被廣泛用于糧食、油料、飼料、釀酒等行業中，適用于各種粉料、粒料和小塊物料的輸送。
The equipment is widely used in grain, oil, feed, brewing and other industries, applicable for conveying of powdery, granular & small piece materials.
特點：
Characteristics:
1.物料水平及傾斜輸送的通用設備
It is a kind of general equipment, with both horizontal conveying and inclined conveying allowed
2.不同厚度機制絞龍葉片滿足不同工藝耐磨需求
Packing auger blades with different thicknesses are adopted to meet different requirements for wear resistance
3.中間吊掛耐磨滑動軸承
Wear-resistant sliding bearing is hung in the middle
4.絞龍與軸連接后做靜平衡校驗
Static balance verification is conducted after connection of packing auger and shaft
技術參數：
Technical parameters:
|
規格型號 Spec. & model |
生產量 （t/h） Output (t/h) |
大轉速 （r/min） Max. speed (r/min) |
螺旋葉片 直徑 （mm） Screw blade diameter (mm) |
螺距 Screw pitch (mm) |
每米軸功率 Shaft power per meter (kw) |
|
TLSS16 |
6 |
112 |
160 |
160 |
0.1 |
|
TLSS20 |
10 |
100 |
200 |
200 |
0.15 |
|
TLSS25 |
18 |
90 |
250 |
250 |
0.20 |
|
TLSS32 |
25 |
80 |
320 |
320 |
0.25 |
|
TLSS40 |
48 |
71 |
400 |
355 |
0.35 |
|
TLSS50 |
70 |
65 |
500 |
400 |
0.4 |
