面粉機是面粉廠研磨制粉的主要設備。以加工小麥為主，也可加工其它雜糧，它主要靠一對相向差速旋轉的磨輥剝開小麥，將小麥胚乳從麥皮上剝刮下來，并碾磨成面粉，工作時物料受到破、剪、剝、刮作用，從而達到一定的研磨效果，每臺面粉機有兩套獨立的傳動、喂料、研磨系統，在粉路中以皮、心、渣、尾各系統不同的技術參數發揮著各自的功能。
Flour mill is main equipment in flour plant used for flour milling. It is mainly used for wheat processing, and it can be also used for processing of other coarse cereals. A couple of grinding rolls which rotate towards the same direction at different speeds peel away wheat husk, get wheat endosperm separated from wheat husk, and mill it until it becomes flour. During operation, the materials are under the effects of breaking, shearing, peeling and scraping, which can achieve a certain milling effect. Each set of flour mill is equipment with two sets of independent transmission, feeding & milling systems, and they function separately in the milling line as per different technical parameters of each system - peel, core, residue, tail.
特點：
Characteristics:
1、采用電子激光精確下料，靜電噴涂生產工藝，外邊色澤亮麗不易變色。
Electronic laser is adopted for accurate feeding, and electrostatic spraying process is adopted, so the surface color is bright and no discoloration occurs for a long time.
2、磨輥平置，物料易進入研磨區，拆裝維修方便。
Grinding roll is placed horizontally, so the materials can enter into grinding zone easily, and assembly & disassembly as well as maintenance are also easy.

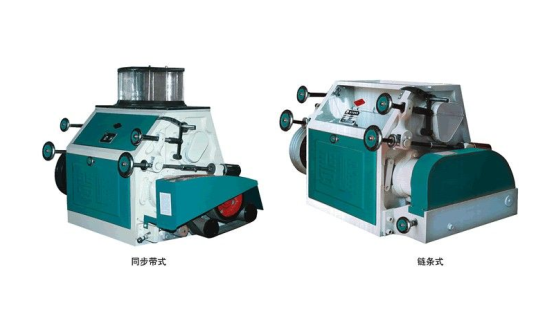

3、可選用同步帶式傳動也可選擇鏈條傳動，客戶可根據自身需求進行選擇。
Both synchronous belt transmission and chain transmission are allowed, and customers can choose either of them as per their own demands.
4、采用喂料輥喂料，是物料可均勻平鋪進入磨輥。
Feeding roll is adopted for feeding, which makes the materials enter into grinding roll uniformly and flatly.
5、快慢輥采用三輪定速齒楔帶傳動，傳遞功率大，不跳齒，不跑偏，運轉平穩，噪音低。
Three-round constant-speed tooth-wedge belt transmission mode is adopted for quick-slow roll, with large transmission power, free of jumping gear and displacement. Besides, the roll can operate steadily, with low noise.
技術參數：
Technical parameters:
|
型號 |
機械傳動方式 |
喂料系統 |
磨輥直徑×長度 |
整機動力 |
單機重量 |
外形尺寸（長×寬×高）mm |
|
6F2235 |
同步帶傳動 |
單喂料 |
Φ220×350 |
5.5-7.5 |
440 |
820×700×590 |
|
雙喂料 |
Φ220×350 |
5.5-7.5 |
||||
|
鏈條傳動 |
單喂料 |
Φ220×350 |
5.5-7.5 |
420 |
||
|
雙喂料 |
Φ220×350 |
5.5-7.5 |
||||
|
6F2240 |
同步帶傳動 |
單喂料 |
Φ220×400 |
5.5-7.5 |
480 |
870×700×590 |
|
雙喂料 |
Φ220×400 |
5.5-7.5 |
||||
|
鏈條傳動 |
單喂料 |
Φ220×400 |
5.5-7.5 |
460 |
||
|
雙喂料 |
Φ220×400 |
5.5-7.5 |
||||
|
6F2250 |
同步帶傳動 |
單喂料 |
Φ220×500 |
7.5-11 |
560 |
970×700×590 |
|
雙喂料 |
Φ220×500 |
7.5-11 |
||||
|
鏈條傳動 |
單喂料 |
Φ220×500 |
7.5-11 |
540 |
||
|
雙喂料 |
Φ220×500 |
7.5-11 |
||||
|
6F2540 |
同步帶傳動 |
單喂料 |
Φ250×400 |
7.5-11 |
800 |
1040×780×670 |
|
雙喂料 |
Φ250×400 |
7.5-11 |
||||
|
鏈條傳動 |
單喂料 |
Φ250×400 |
7.5-11 |
780 |
||
|
雙喂料 |
Φ250×400 |
7.5-11 |
||||
|
6F2550 |
同步帶傳動 |
單喂料 |
Φ250×500 |
7.5-11 |
900 |
1090×780×670 |
|
雙喂料 |
Φ250×500 |
7.5-11 |
||||
|
鏈條傳動 |
單喂料 |
Φ250×500 |
7.5-11 |
880 |
||
|
雙喂料 |
Φ250×500 |
7.5-11 |
||||
|
6F2560 |
同步帶傳動 |
單喂料 |
Φ250×600 |
7.5-15 |
1000 |
1140×780×670 |
|
雙喂料 |
Φ250×600 |
7.5-15 |
||||
|
鏈條傳動 |
單喂料 |
Φ250×600 |
7.5-15 |
980 |
||
|
雙喂料 |
Φ250×600 |
7.5-15 |
