該機廣泛應用于玉米加工廠中，對加工的成品玉米糝進一步的清理，利用風力的作用，把留存在玉米糝中的微皮、黑星及根冠等雜質清理出來，使成品玉米糝的品質更進一步的提高。

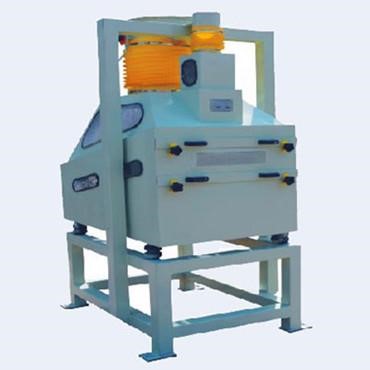

This series of equipment is widely used in corn processing plant for further cleaning of processed corn grits, taking out tiny husks, small black grits, root caps and other impurities mixed in corn grits under the effect of wind power, so as to further improve the quality of the processed corn grits.
特點：
Characteristics:
1、該機利用風、振相配合的原理，對玉米糝清理效果更加理想；
The equipment can achieve a better effect in cleaning corn grits on the principle of combination of wind power with vibration;
2、設備能耗低，后期使用成本低；
The equipment is featured with low energy consumption and low operation cost in the later period;
3、采用優質橡膠支座，使用壽命長；
High-quality rubber support is adopted, and it can have a long service life;
4、設備密封性能好，使用過程中無粉塵外揚
The equipment is featured with satisfactory sealing performance, free of flying dust during operation;
技術參數：
Technical parameters:
|
型號 Model |
產量（t/h） Output (t/h) |
吸風量（m³/h） Air suction amount (m³/h) |
振幅 Amplitude (mm) |
動力 Power (kw) |
質量 Mass (kg) |
外形尺寸（長×寬×高）mm Boundary dimension (L × W × H) mm |
|
XFS80 |
2-4 |
3200-3400 |
3-5 |
0.25 |
270 |
1450×1000×1800 |
|
XFS100 |
4-6 |
3200-3400 |
3-5 |
0.37 |
320 |
1800×1100×2000 |
